Battery energy storage systems are moving toward higher DC voltages as projects grow in power and capacity. A 1500V architecture can reduce current for the same transmitted power compared with a lower-voltage design, which may help reduce conductor requirements and resistive losses in parts of the system. It also places greater demands on insulation, connectors, clearances, routing and installation control.
The cable is only one part of that design, but it is a critical one. A conductor with the right cross-sectional area is not automatically suitable for a 1500V battery system. Its voltage rating, insulation material, temperature performance, termination method and environmental protection must match the complete installation.
Electrical power is the product of voltage and current. For a given power transfer, increasing system voltage allows current to decrease. Because conductor losses are related to the square of current, a higher-voltage architecture can improve transmission efficiency and reduce heat in appropriately designed connections.
That does not mean every cable can simply become smaller. Conductor sizing still depends on current, permissible voltage drop, ambient temperature, grouping, installation method, terminal limitations and fault conditions. Higher voltage also increases the importance of insulation coordination and safe separation between conductive parts.
In a BESS, high-voltage cables may connect:
Each connection can have different requirements even when it belongs to the same nominal system voltage.
The voltage rating describes an approved electrical construction, not only the thickness or color visible from the outside. Insulation material, wall thickness, manufacturing consistency and electrical testing all contribute to the result.

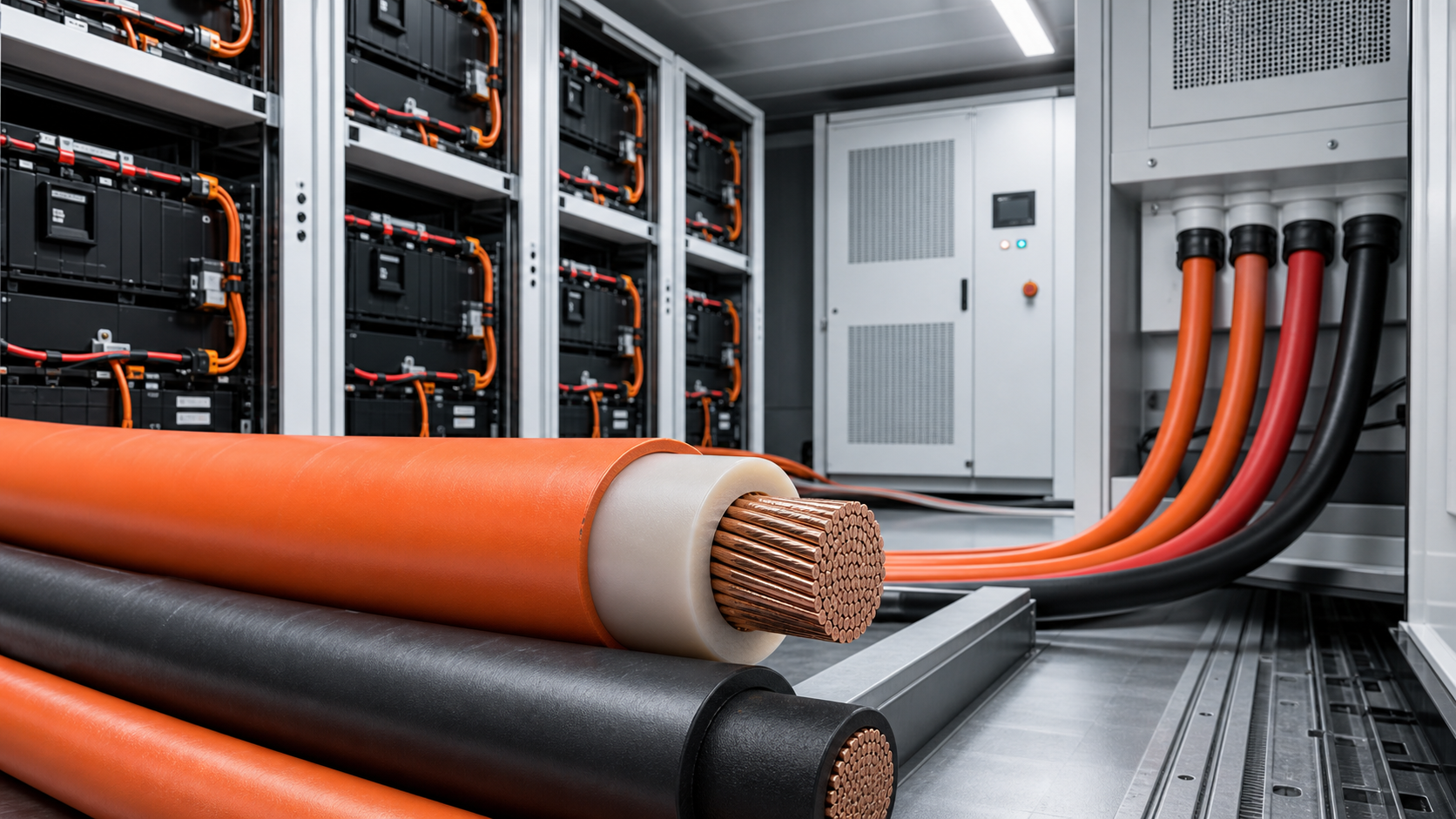

ROLAN CABLE's ES-RYJ-125 energy storage cable is a flexible, unshielded single-core cable rated for 1500V DC. The current product data specifies fine-stranded oxygen-free copper, cross-linked polyethylene insulation and an operating temperature range of approximately −40°C to +125°C, with a short-term rating up to 150°C. Available conductor sizes are listed from 0.5mm² to 240mm².
These values apply to that product construction. The finished system still has to meet the project requirements for voltage, current, temperature, protection, certification and installation.
Cross-linked polyethylene, usually shortened to XLPE, is widely used as an electrical insulation material. Cross-linking changes the polymer structure and improves its thermal and mechanical stability compared with ordinary polyethylene.
For energy storage wiring, an XLPE construction can provide:
The exact compound matters. “XLPE” is a material family, not a complete cable specification. Flame performance, smoke characteristics, oil resistance, temperature rating and certification must be verified from the relevant datasheet.
A common misunderstanding is that a 1500V cable can be selected by voltage alone. Voltage determines the required insulation class; conductor area is primarily driven by current and thermal conditions.
The designer should consider:
Fine-stranded copper improves routing flexibility, especially for large conductor sizes inside a battery cabinet. It does not remove the need for correct lugs, crimping dies and termination procedures.
The standard ES-RYJ-125 shown on the product page uses a compact single-layer XLPE insulating construction. This can be useful for protected internal connections where space and routing flexibility are priorities.
A double-sheathed energy storage cable adds an outer protective layer around the insulated conductor. That additional layer may be selected where the project requires more mechanical or environmental protection, but it also increases finished diameter and weight.
| Selection factor | Single-sheath construction | Double-sheathed construction |
|---|---|---|
| Cable diameter | More compact | Usually larger |
| Routing | Easier in limited cabinet space | Requires more routing space |
| Outer mechanical protection | Relies on insulation and installation protection | Adds a separate protective layer |
| Typical consideration | Protected internal equipment wiring | Installations needing additional jacket protection |
The more robust-looking cable is not automatically the correct choice. The cable route, enclosure, abrasion risk, fluid exposure and connector system should determine whether an outer sheath is necessary.
Orange is widely associated with high-voltage wiring, while red and black are often used for polarity identification. ROLAN CABLE lists orange, red and black options for ES-RYJ-125.
Color improves assembly and maintenance, but it cannot replace labels, drawings, interlocks, isolation procedures and verification. Project conventions may differ, so the cable color and printing should be defined in the technical specification before production.
Useful cable markings may include:
Many field problems occur at the cable ends rather than in the middle of the insulation. Large flexible conductors need a termination system designed for their strand class and cross-sectional area.
Installation planning should cover:
The cable should not be forced into alignment by the terminal. Plan the route so that the conductor enters the connection without side load.
The temperature printed on a cable datasheet is not the same as the allowable operating temperature of every connected component. A cable rated to 125°C may be connected to a lug, fuse holder, busbar support or connector with a lower limit.
Temperature inside an energy storage container can also vary significantly. Battery heat, inverter losses, solar loading, ventilation failures and cable grouping may create local hot spots. Current-carrying calculations should use realistic worst-case conditions and the applicable derating method.
For ES-RYJ-125, the product information lists operation from −40°C to +125°C and short-term exposure to 150°C. The short-term value should not be treated as the normal continuous operating point of the cable system.
The standard ES-RYJ-125 construction is unshielded. Many internal battery power connections do not use an electromagnetic shield, but shielding requirements depend on the system architecture, switching environment, cable length and EMC plan.
A metallic shield cannot be added casually. It affects cable diameter, termination, grounding and fault behavior. If a project requires shielding, specify the expected electrical function and grounding arrangement so the cable and connector system can be designed together.
Sensitive communication, sensing and control circuits should normally use their own appropriate cable constructions and routing strategy rather than being treated as ordinary 1500V power conductors.
For an accurate quotation or cable recommendation, provide:
Providing the battery-rack drawing and cable schedule is often more useful than sending only a model name.
Moving to 1500V DC can support efficient, high-capacity energy storage architecture, but it changes more than the voltage printed on a cable. Insulation, terminals, spacing, protection and work procedures all need to suit the higher-voltage system.
For protected single-core connections, ES-RYJ-125 combines fine-stranded copper with a 1500V XLPE insulation system. Where additional outer protection is required, a double-sheathed energy storage construction may be considered. Final selection should be completed by qualified electrical personnel using the project standards and equipment requirements.
Explore ROLAN CABLE's energy storage cable range, review the ES-RYJ-125 1500V cable, or send the technical team your voltage, current, conductor size, temperature and installation conditions for a customized recommendation.
