TRVV cable should be selected around the actual motion profile—not by the largest cycle number on a data sheet.

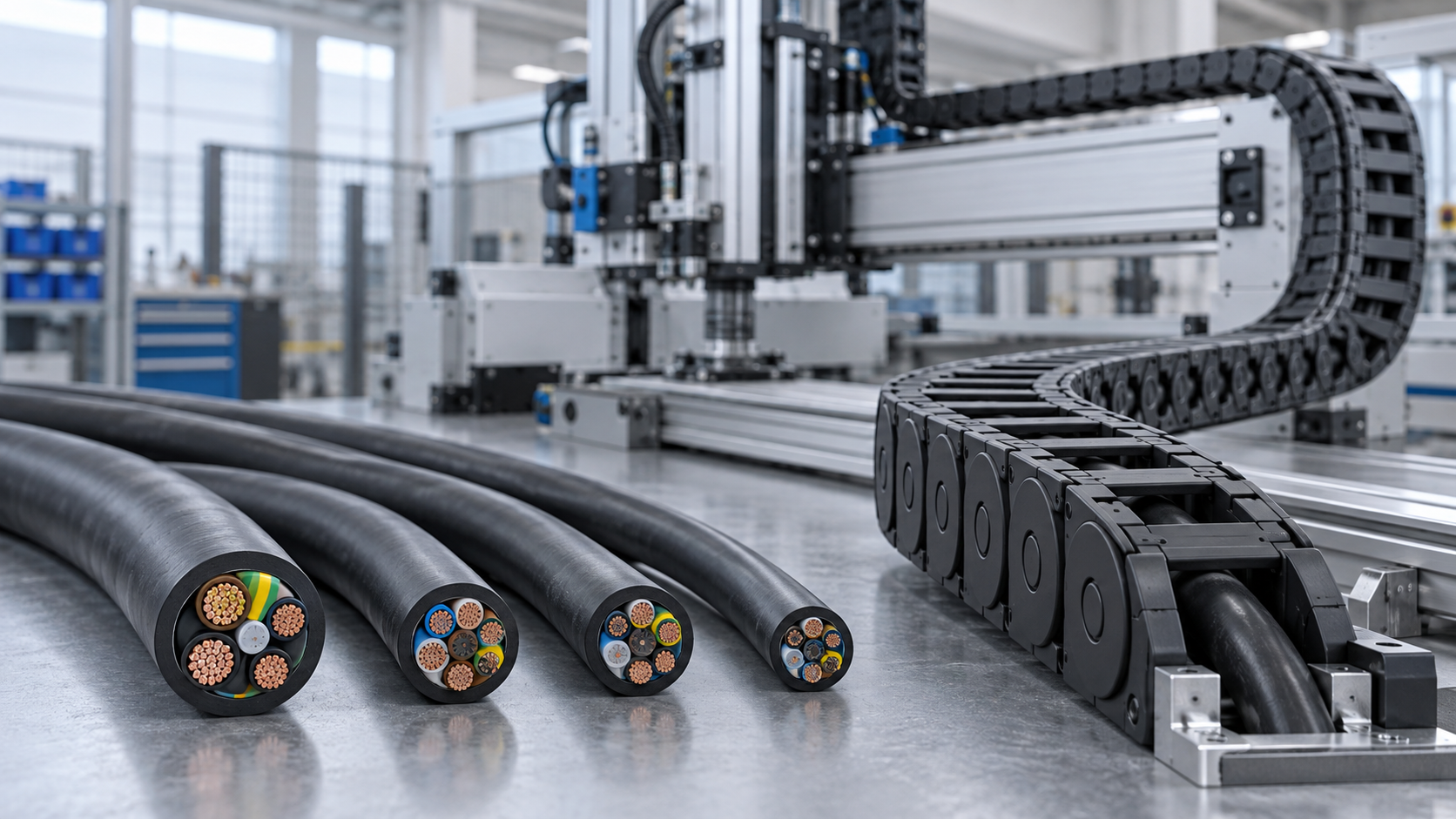

Two cables may both carry the name TRVV, yet behave very differently after months of reciprocating motion. One may be intended for moderate movement in a compact machine, while another is built for a fast drag chain that runs through several shifts every day. The visible difference is not always obvious. What matters is the complete construction: conductor stranding, core insulation, lay length, fillers, wrapping, jacket material and the conditions used for flex testing.
This is why Rolan Cable offers TRVV unshielded drag chain cables in several bending-life levels. The 6-million, 10-million, 15-million and 30-million options are not simply good, better and best. Each is intended for a different combination of speed, travel, bend radius, environment and expected machine life.
This guide explains what those ratings mean and what information a cable manufacturer needs before recommending the right construction.
TRVV is a multi-core, unshielded flexible cable developed for repeated movement in drag chains and other reciprocating machine assemblies. It is commonly used for low-voltage power, control and general signal circuits in CNC machines, gantry systems, packaging equipment, robotic cells and automated production lines.
A typical TRVV construction includes:
TRVV is normally unshielded. Where electromagnetic interference is a concern, an overall-shielded TRVVP cable or a shielded twisted-pair TRVVPS cable may be more appropriate. Choosing an unshielded TRVV cable for a noise-sensitive encoder circuit can create a signal problem even when the mechanical flex rating is sufficient.
One bending cycle generally represents one complete back-and-forth movement under defined test conditions. If a cable is described as suitable for 10 million cycles, that number only has meaning together with the test bend radius, travel, speed, acceleration, load, temperature and installation method.
A cable that reaches 10 million cycles on a controlled test rig may not reach the same number in a machine if it is installed below its minimum bend radius, twisted during assembly or packed tightly against other cables. Conversely, a correctly selected and installed cable operating at a generous bend radius may perform very reliably in a less demanding application.
Treat the cycle figure as a way to compare constructions within a defined product family. It should never replace an application review.
| TRVV level | Typical duty profile | Suitable applications | Important selection note |
|---|---|---|---|
| 6 million cycles | Regular reciprocating motion at moderate speed | Small CNC machines, compact automation, light packaging equipment | A practical option when travel, speed and daily cycles are controlled |
| 10 million cycles | Frequent movement across one or two shifts | Machine tools, pick-and-place units, assembly equipment | Offers additional endurance for equipment with higher utilization |
| 15 million cycles | Continuous production and frequent axis movement | Robotic cells, gantries, automated production lines | Useful when downtime is costly and the motion profile is demanding |
| 30 million cycles | High-speed or long-duty motion in demanding environments | Fast automation, long operating hours, oil-exposed machinery | Construction and jacket material become especially important; verify all test conditions |
This table is a starting point, not a substitute for a cable calculation. A slow machine running 24 hours a day may accumulate more cycles than a fast machine used for one short batch per day.
Cycle requirements are often underestimated because buyers focus on machine speed and overlook operating time. A simple estimate is:
Estimated yearly cycles = cycles per minute × operating minutes per hour × operating hours per day × operating days per year
For example, an axis completing 20 cycles per minute for 16 hours a day and 300 days a year performs about 5.76 million cycles annually. In this case, a nominal 6-million-cycle cable would leave little theoretical margin, even before considering startup, maintenance jogging and changes to production volume.
The calculation does not predict exact cable life, but it helps establish a sensible target. For equipment expected to operate for several years, the cable specification should account for the desired maintenance interval rather than only the first year of production.
Bending the cable too tightly concentrates mechanical strain in the copper strands and jacket. This is one of the fastest ways to shorten service life. The correct radius is normally expressed as a multiple of the finished cable outside diameter, such as 7.5 × D or 10 × D. Use the value specified for the selected model and dynamic installation—not a rule copied from another cable.
Short, unsupported drag-chain travel places different mechanical demands on a cable than a long gliding arrangement. In long-travel systems, the upper chain run may slide over the lower run, adding abrasion and pulling forces. The cable jacket and installation clearance must be suitable for this motion.
High speed matters, but rapid acceleration and sudden reversal can be even more severe. These forces make the cable shift inside the carrier and increase stress around the bend. Provide both values when requesting a quotation.
A cable needs room to move slightly inside the drag chain. Overfilling the carrier, stacking cables randomly or tying them together along the moving section can produce rubbing, corkscrewing and uneven load. Cables with significantly different diameters should be separated where the carrier design requires it.
Flexible PVC is suitable for many indoor machines and offers a practical balance of flexibility and cost. PUR is often selected where abrasion, oil, coolant, low temperature or demanding continuous motion is involved. Jacket choice should follow the environment; PUR is not automatically required for every application.
Low temperature can make some compounds stiffer, while high temperature accelerates material ageing. Oil, coolant and cleaning chemicals may soften or swell an unsuitable jacket. State the actual chemicals and exposure pattern rather than asking only for an “oil-resistant” cable.
TRVV cable should be laid into the carrier without twisting. It should not be pulled from a coil over the flange like rope. Both ends need suitable strain relief outside the moving bend, and the cable should be allowed to settle naturally before final clamping.
A 6-million-cycle construction can be a sound engineering choice for machinery with moderate motion, predictable shifts and a controlled indoor environment. It may suit smaller CNC equipment, laboratory automation or machines that do not operate continuously.
There is little value in specifying the highest cycle level when the machine itself has a short service life or the cable will be replaced routinely with another wear component. The better approach is to calculate expected cycles, apply an appropriate margin and confirm that the electrical and environmental requirements are also met.
Ten- and fifteen-million-cycle TRVV cables are useful for machinery with higher utilization, faster motion or longer maintenance intervals. They are often considered for production equipment operating across multiple shifts, automated handling axes and moving assemblies where an unexpected cable failure would stop the line.
At this level, cable routing deserves as much attention as cable construction. A higher-rated cable cannot compensate for a carrier that is too small, a radius that is too tight or an installation that forces the cable to twist.
A 30-million-cycle PUR TRVV cable is intended for demanding continuous-motion systems. Rolan's current construction uses ultra-fine stranded copper conductors, HDPE core insulation and a polyether-based PUR outer jacket. Published reference data includes up to 3 m/s unsupported speed, up to 2 m/s gliding speed and a dynamic temperature range of -30°C to +105°C under the specified conditions.
This level may be appropriate when the machine operates for long hours, movement is fast, the maintenance interval is extended or the cable is exposed to oil and abrasion. However, a 30-million-cycle rating should not be purchased from the number alone. Confirm the tested bend radius and make sure the selected conductor size, core count and finished diameter fit the carrier.
Mechanical life is only one part of cable selection. TRVV is a good choice for unshielded power and control circuits where electrical noise is limited. Consider a different construction when:
TRVVP provides an overall shield for general multi-core circuits. TRVVPS combines twisted pairs with overall shielding for signal transmission. Where multiple pairs need electrical separation, an individually shielded construction may be required. Do not add shielding automatically, but do not omit it when signal integrity depends on it.
A useful request for quotation should include more than core count and conductor size. Send the following information whenever possible:
With this information, the manufacturer can recommend a realistic TRVV construction rather than simply quoting the lowest-cost cable with the requested number of cores.
Consider a packaging gantry with a 4 m travel, 25 cycles per minute, two-shift operation and occasional exposure to cleaning fluid. The cable carries 24 VDC control power and general I/O, so shielding is not required. A buyer might initially request a 10-million-cycle PVC TRVV cable.
The annual cycle estimate, however, may already exceed six million. The long travel and chemical exposure also change the jacket requirement. After reviewing the actual carrier geometry, speed, acceleration and cleaning agent, a higher-cycle PUR construction could provide a more dependable maintenance interval. The right answer comes from the operating data, not the model name alone.
No. RVV is a general flexible multi-core cable and is commonly used for fixed or occasional-flex installations. TRVV uses a construction developed for repeated movement in drag chains. Ordinary flexibility does not mean continuous-flex capability.
No. TRVV cables are available with flexible PVC and PUR jackets. PVC is suitable for many indoor applications, while PUR is often chosen for greater resistance to oil, abrasion, low temperature and demanding motion.
Not necessarily in the actual machine. The ratings are meaningful only under their specified test conditions. Bend radius, speed, travel, temperature, installation and contamination can change real service life considerably.
It can be configured for power, control or general low-voltage signals, provided the conductor sizes and electrical ratings are correct. Noise-sensitive signals may require shielding or twisted pairs, so circuit compatibility should be reviewed first.
Yes. Common options include conductor size, core count, jacket material, jacket color, printing, length and packaging. Electrical ratings and motion requirements must be confirmed before the construction is finalized.
The best TRVV cable is not automatically the one with the largest cycle number. It is the cable whose construction matches the electrical load, motion profile, drag-chain geometry, operating environment and planned maintenance interval.
Browse Rolan Cable's TRVV high-flex unshielded drag chain cable range, or contact our team with your conductor size, core count, bend radius, travel, speed and environmental requirements. We can help compare the available 6-million, 10-million, 15-million and 30-million-cycle options for your equipment.
